Product Details :

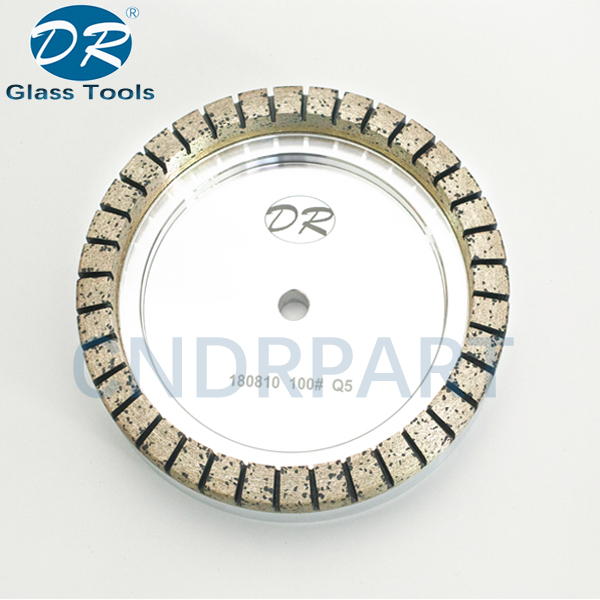

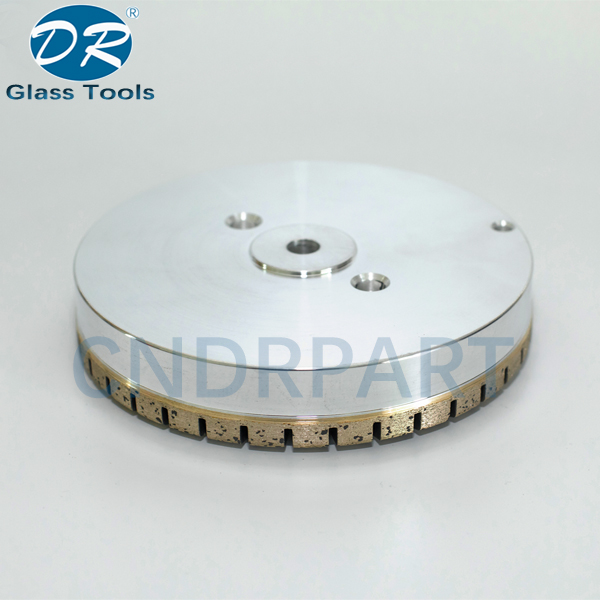

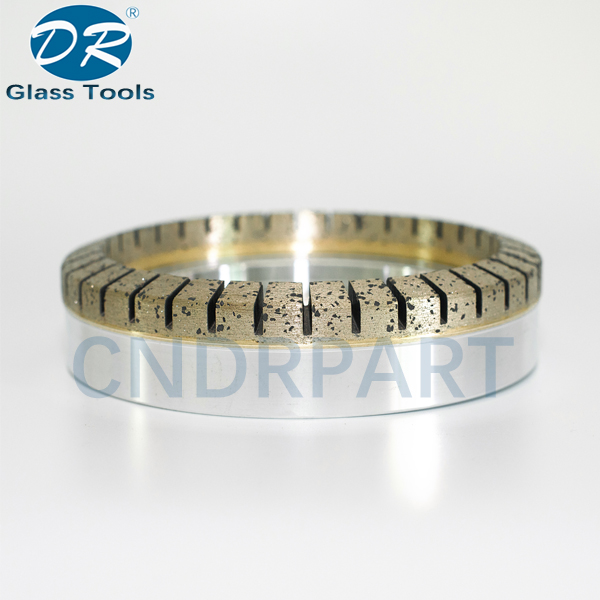

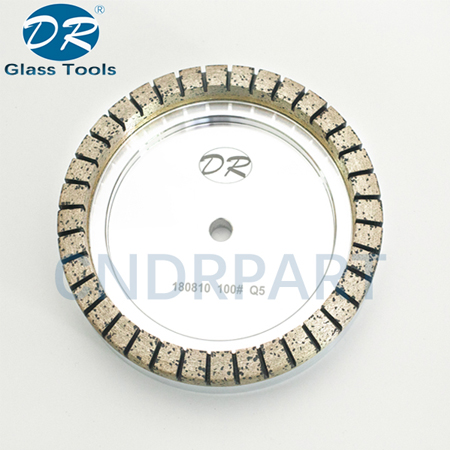

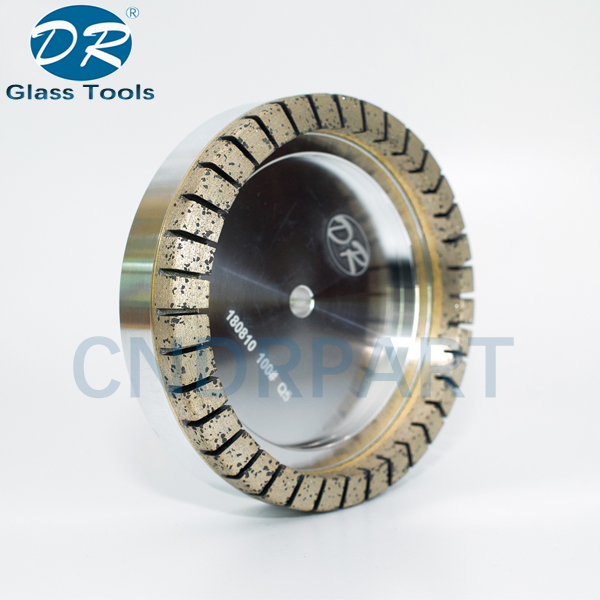

Segmented Diamond Wheel

High quality edge diamond grinding wheel for glass straight-line edging & beveling machine

Quick Details
  • Place of Origin:        Hubei, China (Mainland)


  • Brand Name:          DR

    Model Number:       DR-A1


    Style:        segmented

  • Grit:          80/100/120#


  • Suitable MC:   All kinds of double edger MC made in China and abroad

  • work rim size:    15*10mm

  • hole size:      12/50mm

  • Size1:    150*15*10mm

  • Size2:    150*10*10mm

  • Size3:    175*15*10

  • Hardness:     hard

  • Abrasive:       diamond

  • Size:150*15*10*H12/50mm

  • Bonding Agent:    Metal

  • Shape:        Cup-Shaped


  • Supply Ability
  • Supply Ability: 5000 Piece/Pieces per Month
Packaging & Delivery
  • Packaging Details:     Standard Export Packing

  • Port:    Wuhan


High quality diamond grinding wheel for glass straight-line edging & beveling machine



Cup-shape diamond grinding wheel



NameSegmented Diamond Wheel

Outer
 Diameter
HoleActual Work
 Rim Size
GritPosition No.Shape of Work RimApplication
15012,5015×1080/100/120Rough GrindingSegmentedIt is used for edging machine and double edging machine.
17550,7015×1080/100/120Rough GrindingSegmentedIt is used for double edging machine.
Remarks: Different specifications are available if request.          Size mm
Sintered Diamond Grinding Wheel
    Available in diamond-bonded series and resin-bonded series, the tools are sharp and wear-resistant which are made of selected materials by adopting advanced equipment, comprehensive technical judgment and advanced enterprise management.
D Wheel diameter         E Hub thickness at the bore      H Bore diameter                        J Hub diameter
T Total wheel height     V Bevel angle                                W Diamond section width       X Diamond section depth
